Car Accidents in the USA

Source: https://github.com/hlud6646/us-accidents

An interviewer asked me ‘What kind of exposure to SQL have you had?’ and I felt that my answer of ‘one uni subject and some hacker-rank practice problems’ was insufficient. Next time I will tell them about this.

I wanted to do something more interesting than ’load a database, do some queries’ and have gone into territory where SQL might not be the first thing you think of. Essentially this project is a large geospatial analysis of car crashes, with lots of visualisations. SQL enters the picture via the interface for querying the data, although in the end it is not through a database per se, but rather the SQL interface of an RDD in Apache Spark.

Why not keep it simple and actually use a database? I find it hard to find motivating practice projects in SQL. While I do begin with an example ETL pipeline, to do interesting work I switch to a docker instance running Apache-Sedona. This way I get to learn a bit about docker and brush up on distributed computing too.

The Data

The idea for this came from a popular Kaggle dataset on US Accidents. This contains the location, time and several descriptive features of car accidents in the contiguous United States in the years from 2016 to 2023. There are a lot, which is good because it makes you think properly about the ETL process. The data are contained in one large csv file.

Data for state and county lines in the US is available at cencus.gov. These are in shapefiles.

Lastly, another dataset on Kaggle provides detailed data from the 2015 and 2017 censuses. If this was something more than an educational project I would worry more about the provenance of the Kaggle datasets and try to rebuild them from official sources. For these purposes they should be fine.

DB Admin

I did actually start with a regular PostgreSQL database. This project is supposed to demonstrate SQL, so even if the maps are drawn somewhere else in the end, I’m pleased to have followed the database admin steps through. These will be

• Create admin and normal roles for the project;
• Create a database and configure permissions.

For a project like this with a single contributor (me) it is overkill to have different roles. In the real world it’s hugely important to give everybody only the minimal set of permissions necessary for them to do their job. So to continue with the exercise in mock administration, run the following commands in a psql console as a user with the Create role and Create DB attributes. All these commands are pretty obvious, except maybe ‘alter default…’. These simply say that the intern should get read and write access for any tables that admin creates (this is a bit heavy-handed but you get the idea), while admin gets full access to any tables that the intern creates.

create user us_accidents_admin with encrypted password 'bigsecret';
create user us_accidents_intern with encrypted password 'password42';
create database us_accidents;
grant all privileges on database us_accidents to us_accidents_admin;
alter database us_accidents owner to us_accidents_admin;
-- Switch to a new connection on the us_accidents database now.
alter default privileges
    for role us_accidents_admin
    in schema public
    grant select, insert on tables to us_accidents_intern;
alter default privileges
    for role us_accidents_intern
    in schema public
    grant all privileges on tables to us_accidents_admin;
grant connect on database us_accidents to us_accidents_intern;
grant usage, create on schema public to us_accidents_intern;

The following sequence verifies that the permissions are configured correctly:

 (admin)# create table demo(foo integer, bar varchar(40));
 (admin)# insert into demo values(123, 'Hi!');
(intern)# insert into demo values(456, 'Bon Jour!');
(intern)# select * from demo;
(intern)# truncate demo; -- Fails.
(intern)# create table demo2(foop integer, barp varchar(40));
(intern)# insert into demo2 values(987, 'hihihi');
 (admin)# select * from demo2;
 (admin)# drop table demo;
 (admin)# drop table demo2;

ETL

The next part is propagating the database with the contents of the files discussed above. Starting with the raw data on accidents, the goal is to get a table like this:

The accidents are in CSV format, and it is definitely possible to read this directly into a database. In fact the fastest way to load data is like this. In this case though there are many columns that we don’t want, and there is some preprocessing to do first, which while possible in SQL, is much easier in a language like Python.

Extract

The file is around 3G, which would comfortably fit inside RAM on this machine, but this is also an opportunity to develop a process for working with larger than memory datasets. The state of the art (in Python or Rust at least) is the Polars library, which is similar in some ways to the more well known Pandas but with the option to be lazy. Essentially this means that when you load a file into a dataframe, almost nothing happens. When you manipulate it, again nothing really happens. What does happen in both cases is that a computation plan is created, which can be optimised as further manipulation steps are added. When you call a special method called collect this computation is actually run.

Moving to the actual data, some of the 40 or so recorded features are

• ID
• Source
• Severity
• Start_Time
• End_Time
• Start_Lat
• Start_Lng
• End_Lat
• End_Lng
• Distance(mi)
• Description
• Street
• City
• County
• State
• Zipcode
• Country
• Timezone
• Airport_Code
• Weather Condition
• …

The rest are descriptions of the accident site and have lots of null values. From the list above we will keep the features marked in bold. We can (lazily) load the data and extract these columns as follows. Note that polars can handle the tedious task of parsing dates for us.

df = pl.scan_csv("data/US_Accidents_March23.csv", try_parse_dates=True)

df = df.select(
    # pl.col("ID"),
    pl.col("Severity").alias('severity'),
    pl.col("Start_Time").alias('datetime'),
    pl.col("Start_Lat").alias('lat'),
    pl.col("Start_Lng").alias('lng'),
    pl.col("Weather_Condition").alias('weather_condition'),
    pl.col("City"),
    pl.col("State"),
    pl.col("County")
)

We have a dataframe like

and if we inspect the schema with df.collect_schema() we find that polars has read the numeric types and dates correctly.

Transform

Next we want to compress the city/state/county fields to a ‘city_id’ (imagine we are constrained by disk size or that the manager wants the database normalised). Recording the city alone is not enough, since there are at least 31 cities called ‘Washington’ in the continental US. Creating a key based on the city and county name is not enough, since there are at least four states that have a city called ‘Carrollton’ in a county called ‘Carroll’. And creating a key based on city and state doesn’t work either, since there are at least seven cities in Virginia called ‘Fredericksburg’.

So we need a key based on all three of city, county and state. In polars we can select unique combinations of these three attributes and create an artificial key as follows:

cities_df = df.select(
    pl.col('City'),
    pl.col('State'),
    pl.col('County')
).unique().with_row_index(name='city_id')

This is still just a computation plan, so to execute it (and print the markdown below) you need to do something like

print(cities_df.head().collect().to_pandas().to_markdown(index=False))

Our cities frame now looks like

and all that’s left to do is to replace City/State/County in the original dataframe by the new city_id, by joining this new table and then excluding the unwanted features:

df = (
    df.join(
        cities_df,
        on=['City', 'County', 'State'],
        how='left'
    )
    .select(pl.exclude(['City', 'County', 'State']))
)

Load

We now have our final table of accidents data:

and can write it (and the cities dataframe) to the database. Polars has a very convenient method for this, allowing you to create and populate a database in a single line:

df.collect().write_database(table_name='accidents', connection=DB_URI)
cities_df.collect().write_database(table_name="cities", connection=DB_URI)

Since the cities table is derived from the accidents table, any data integrity constraints that we might require are guaranteed to hold. It’s a good idea to enforce them anyway, if we imagine that the schema will become more complex as we add other data sources. The constraint to consider here is that the city_id for an accident record must correspond to a row in the cities table. The sql to achieve this is like

alter table cities
add constraint unique_city_id
unique (city_id);

alter table accidents
add constraint fK_accidents_city_id
foreign key (city_id) references cities(city_id);

For a quick test lets count the number of accidents per day in December 2020:

select count(*) as count, extract(day from datetime) as day
from accidents
where extract(month from datetime) = 12
  and extract(year from datetime) = 2020
group by day
order by count desc
limit 4;

from which we can see that lots of Americans crash their cars in the days before Christmas, possibly because more of them are driving longer distances.

EDA

Having done all of that, we will now actually not use it at all and turn to a different analytics solution. The point of this project was to demonstrate SQL, so the excursion into Docker and Apache-Sedona isn’t given quite as much air time as the discussion above.

Setup

The easiest way to experiment with apache products is via their official container images. The following command will (pull and) launch an an ubuntu instance with apache-sedona ready to use. It will take 2GB memory for the driver and executor each and expose a few ports so that we can interact with it.

docker run -e DRIVER_MEM=2g -e EXECUTOR_MEM=2g -p 8888:8888 -p 8080:8080 -p 8081:8081 -p 4040:4040 apache/sedona

Find the container id with something like docker ps | grep sedona and then copy the data to the instance with docker cp <path to data> <instance id>:/opt/workspace/data. We can now interact with the instance via the exposed port at http://localhost:8888/lab.

Spark

The plan is to analyse the accidents data with apache-spark. Because the data is geospatial in nature (accidents take place at a definite location) the tool will be apache sedona, which add extra functionality to base spark. Very often the results of a query are converted to a Pandas dataframe. This begs the question “Why not just use Pandas from the start?”, which is probably fair in this case. For larger datasets and more complex queries though the whole point of apache-spark is that you can distribute both the data and the processing across a cluster of machines. Dropping the result of your query into Pandas and working in that library just for plotting is a reasonable workflow.

This note is supposed to be about SQL primarily, so I will not dwell on configuring spark/sedona or loading the data in. All of that can be found in the source code linked at the start. First we should repeat the sanity check from earlier. As we go, we’ll keep a close eye on what SQL operations are permitted in the Spark interface. Here we have column aliasing, grouping and aggregation, timestamp manipulation and ordering.

print(sedona.sql("""
    select count(*)                     as count,
           extract(day from start_time) as day
    from accidents
    where extract(month from start_time) = 12
      and extract(year from start_time) = 2020
    group by day
    order by count desc
    limit 4;
""").show()

# +-----+---+
# |count|day|
# +-----+---+
# | 8013| 23|
# | 7763| 24|
# | 7497| 17|
# | 7350| 30|
# +-----+---+

A First Look

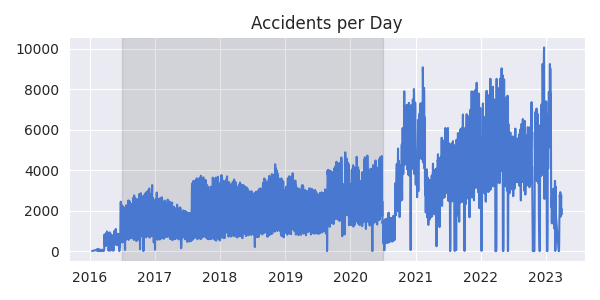

The simplest visualisation I can think of with this data would be the number of accidents per day:

tmp = sedona.sql("""
    select count(*)                      as count,
           date_trunc('day', start_time) as date
    from accidents
    group by date;
""").toPandas().set_index("date")

fig, ax = plt.subplots(figsize=(6, 3))
sns.lineplot(tmp, legend=False, ax=ax)
ax.set(xlabel="", title="Accidents per Day");
ax.axvspan("2016-07-01", "2020-06-30", alpha=0.1, color="black");

Clearly the data is very noisy, and for whatever reason is not good outsite the shaded region. The following plot shows that the noise is at least partly due to a weekend/weekday effect on the number of accidents. Note that from now on only the sql queries will be shown in code boxes.

This project is supposed to be about SQL, and so from now on the codeboxes will only show the SQL queries that are passed to the sedona.sql function. Also omitted is code for plots, but it’s all available in the notebook in the source code.

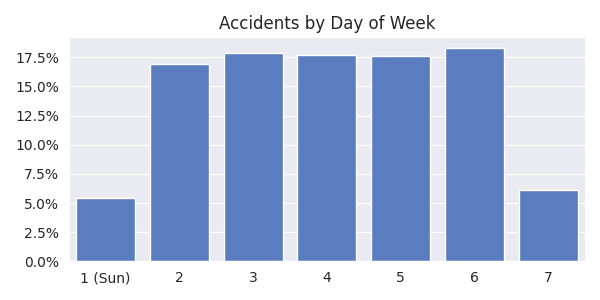

-- Find the total number of accidents. Store the result in a python
-- object called total_accidents.
select count(*)
from accidents
where start_time between "2016-07-01" and "2020-06-30";

-- Because the sql is passed as text to a python function, we can
-- use string interpolation to include the output of the previous query.
select count(*)                                     as count,
       round(count(*) / {total_accidents} * 100, 1) as proportion,
       extract(dow from start_time)                 as dow
from accidents
where start_time between "2016-07-01" and "2020-06-30"
group by dow
order by dow;

Many SQL engines will allow you to bind the result of a select expression to a variable which can be used in subsequent queries. Spark does not allow this, which is why we had to perform the calculation above in two stages. In fact we could substitute the whole expression that finds the total_accidents into the second computation, but that would make it a bit hard to read. It is worth being aware of the fact that running two separate computations diminishes the opportunity for the spark engine to optimise the queries.

Any time we see string interpolation in an SQL query we should hear alarm bells ringing. This is one of the most basic security vulnerabilities (https://xkcd.com/327/) but it is safe here, since we defined the replacement value ourselves with no input from outside.

To recap on concepts introduced here, we have filtering results, proportions, variable binding, injection attacks.

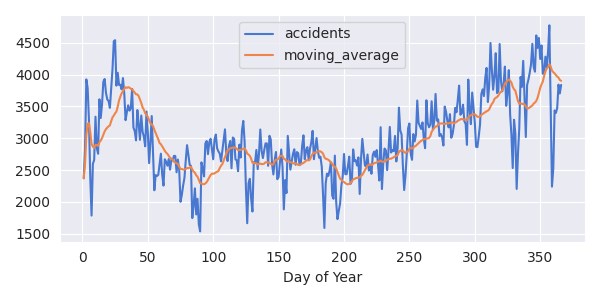

The last plot in this part is this part is an attempt to isolate the yearly seasonality of accidents. If we look at the three complete years in the shaded part above, namely 2018, 2018 and 2019, we can form a time plot of the number of accidents each day of the year. We can then take the mean of all three, to hopefully smooth the line somewhat. We can also overlay a moving average of the last 20 observations. It appears that Americans crash more in Winter.

Note that the sql query to find a moving average of a time series - which is itself an averate of three time series - requires a doubly nested subquery.

select doy,
       accidents,
       avg(accidents) over (order by doy rows between 20 preceding and current row) as moving_average
from (select doy,
             avg(count) as accidents
      from (-- this query will select the number of accidents per day, for each day of the year and each year.
               select count(*)                     as count,
                      datepart('doy', start_time)  as doy,
                      datepart('year', start_time) as year
               from accidents
               group by doy, year)
      group by doy)
order by doy

Normalising by Population

If we are looking for variance in the number of accidents by county, it well help to normalize by population for the county first. If we do this we see that while Harris county has the most accidents in absolute terms, that is because it is by far the most populous county. Travis county is ~1/6 the size and yet it still has 5 times more accidents than Harris on a per capita basis:

The query here is

 select c.geometry,
    c.name as county,
    ifnull(a.count, 0) as accidents,
    cast(round(cencus.population / 1000, 1) as string) || "k" as population,
    -- Accidends Per 100 K
    round(accidents / cencus.population * 100000, 2) as Ap100k from counties c
left outer join (
    select count(*) as count,
        county
    from accidents a
    where a.state_code = 'TX'
        and start_time between "2016-07-01" and "2020-06-30"
    group by a.county) a
on c.name = a.county
right outer join (
    select County,
        sum(TotalPop) as population
    from cencus
    left outer join counties c
        on County = c.name
    where State = 'Texas'
    group by County
) cencus
on c.name = cencus.County
where c.STUSPS = 'TX'
order by Ap100k desc

It is important to use a left join in this query to capture all the counties, including those for which no accidents have been recorded.

Summary

This project started with creating and populating a postgresql database with data from some csv and shapefiles. Following that we moved to an Apache Spark environment, where we used the SQL interface into dataframes. We observed a few seasonal trends in the data and noticed that Travis county is a good place to own a smash repair shop.
